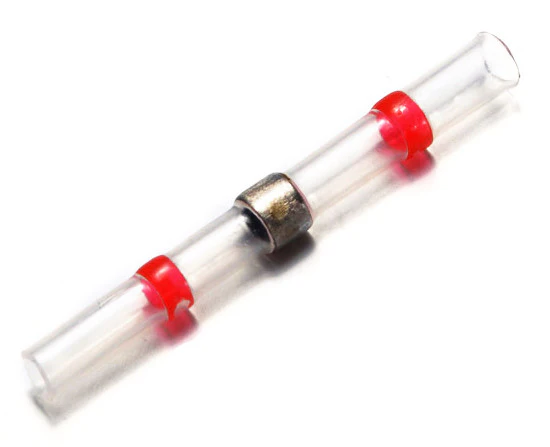

100 stk. Tin Hitakrumptengi – Rautt 3.2×2.9×40.
Prenta
12.399 kr. m/vsk
100 stk. Tin Hitakrumptengi – Rautt 3.2×2.9×40.
Ekki til á lager
Description
Solder Sleeve Wire Splices is one piece design, it consists of transparent heat shrinkable sleeve and fluxed solder Provides insulation, inspection, strain relief and water proof. Makes installation easily and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it’s very convenience to use the exact wire dimension.
Application: In-line Wire splices
Operating Termperature Range:
>Operating temperature : -55˚C~125˚C
>Fully recovery temperature : 130˚C
>Temperature of fully solder melt : 150˚C
Property
| Item | Value |
| Temperature Application Range | -55˚C~125˚C (Butt Joint)-40˚C~125˚C(End Connector) |
| Shrinking Temperature | >150℃ |
| Dielectric strength | 2KV |
| Protection Type | IP 67 |
Specification
| Model | Color |
Before Shrinking(mm) |
After Shrinking(mm) |
Solder Ring |
Length (L) |
||||
|
ID (a) |
Thickness(b) |
ID |
Thickness |
ID (c) |
Thickness(d) |
Length (e) |
|||
|
SSWS-1 |
White |
2.0±0.1 |
0.30±0.05 |
1.1±0.1 |
0.50±0.05 |
1.8±0.1 |
0.3±0.05 |
1.6±0.1 |
25±0.5 |
|
SSWS -2 |
Red |
3.2±0.2 |
0.38±0.05 |
1.5±0.1 |
0.55±0.05 |
2.9±0.1 |
0.45±0.05 |
3.0±0.1 |
40±0.5 |
|
SSWS -3 |
Blue |
5.0±0.2 |
0.40±0.05 |
2.6±0.1 |
0.78±0.05 |
4.6±0.1 |
0.48±0.05 |
4.2±0.1 |
40±0.5 |
|
SSWS -4 |
Yellow |
6.5±0.2 |
0.40±0.05 |
3.0±0.1 |
0.80±0.05 |
6.2±0.1 |
0.5±0.05 |
4.3±0.1 |
40±0.5 |
| Þyngd | 0,2 kg |
|---|
